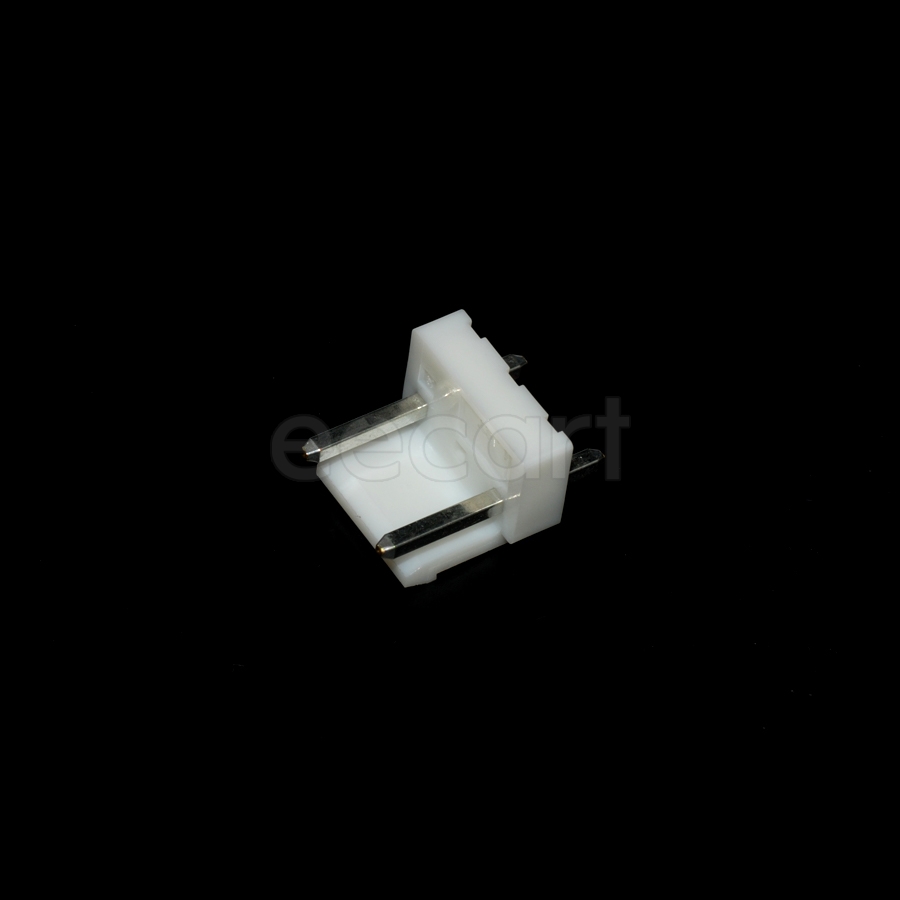

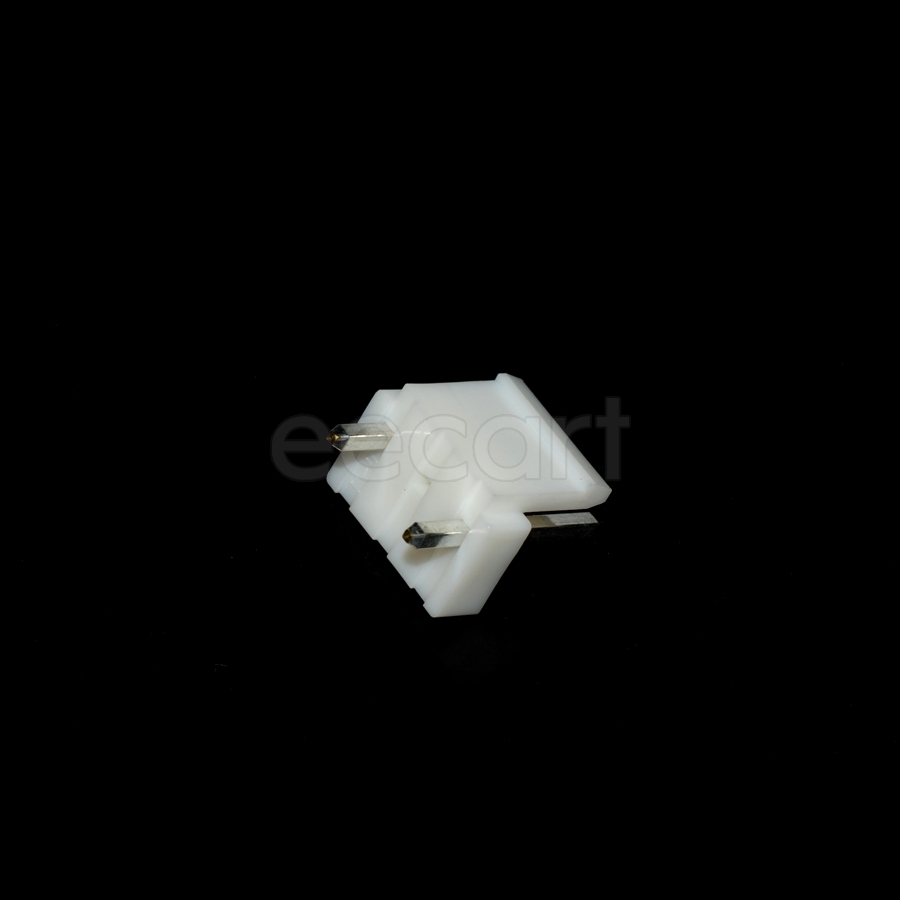

B2P3-VH (LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B2P3-VH (LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:7.92 mm
| Parameter | Value |
|---|---|
| Length | 11.82 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Depth | 8.5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Copper, Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 7.92 mm |
| Max Current Rating | 7 A |
| Orientation | Straight |
| Color | Natural |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Friction, Ramp |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | White |
| Contact Mating Length | 7.6962 mm |
